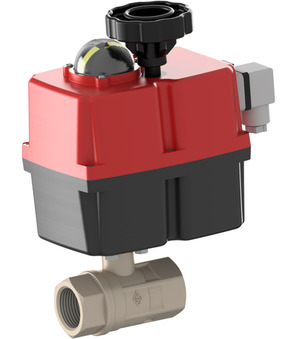

BA080-20-0R

Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...40bar; Length 138mm; Flange ISO5211 F05; Square 11mm

Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 35Nm; Operating time 9s; Flange ISO5211 F03/04/05-star 14mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67

Square adapter Series VK; 14X11; Length 16mm; Material Stahl
