BA080-14-T0

Name: BA080-14-T0
Brand: STASTO
SKU: BA080-14-T0
Price: 271.4 EUR
Availability: InStock

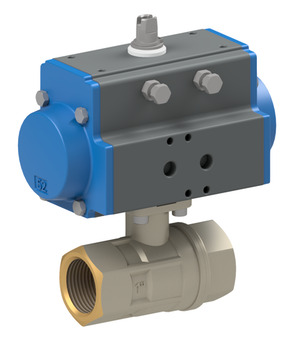

Ball valve with pneumatic actuator Series BA080; Body, Ball Brass; Seals PTFE/FKM/EPDM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...40bar; Length 67mm; Actuator PAS0525; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.668 Kg
Short Itemnumber: BA08014T0

ball valve with pneumatic actuator series BA080; body, ball brass; seals PTFE/FKM/EPDM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0...40bar; length 67mm; actuator PAS0525; safety position NO

271,40 € 271.4 EUR 271,40 €

Female thread
- RP 1/4"
DN
- 8 mm
Length
- 67 mm
Pressure range
- 0...40 bar
Actuator
- PAS0525

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
Female thread	RP 1/4"
DN	8 mm
Length	67 mm
pressure
Pressure range	0...40 bar
characteristics
Actuator	PAS0525

2500-1/4"-A x 1.0

Ball valve made of brass 2500-1/4"-A

Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm

Add to Cart

PAS0525-B x 1.0

Pneumatic actuator PAS0525-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
