BA080-14-CL

Name: BA080-14-CL
Brand: STASTO
SKU: BA080-14-CL
Price: 825.9 EUR
Availability: InStock

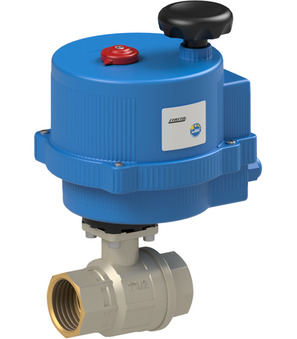

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; For a maximum of 100 operations a day; Medium temperature 0...+100°C; RP 1/4"; DN 8mm; Pressure range 0-40bar; Length 67mm; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Voltage 24VAC/DC; Protection class IP67

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.873 Kg
Short Itemnumber: BA08014CL

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; for a maximum of 100 operations a day; medium temperature 0...+100°C; RP 1/4"; DN 8mm; pressure range 0-40bar; length 67mm; incl. positioner 4-20mA/0-10V; torque 30Nm; operating time 8s; voltage 24VAC/DC; protection class IP67

825,90 € 825.9 EUR 825,90 €

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

ZIP

Datenblätter

Datenblatt_BA080-14-CL_DE.pdf

Download

No documents are available for this language. Please open "Other languages."

VB030-L-P0S x 1.0

Electrical actuator VB030-L-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

2500-1/4"-A x 1.0

Ball valve made of brass 2500-1/4"-A

Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm

Add to Cart
