BA080-12-0R

Name: BA080-12-0R
Brand: STASTO
SKU: BA080-12-0R
Price: 482.1 EUR
Availability: InStock

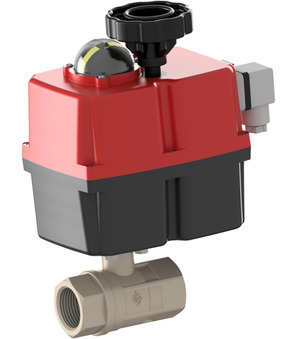

Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 1/2"; DN 15mm; Pressure range 0-40bar; Length 67mm; Operating time 9s; Voltage 24...240VAC / 24...135VDC; Protection class IP67; LED

Intrastat No.: 84818081
Country of origin: Spain
Weight: 2.083 Kg
Short Itemnumber: BA080120R

ball valve with electrical actuator; female thread; body, ball brass; seals PTFE/FKM; medium temperature 0...+100°C; RP 1/2"; DN 15mm; pressure range 0-40bar; length 67mm; operating time 9s; voltage 24...240VAC / 24...135VDC; protection class IP67; LED

482,10 € 482.1 EUR 482,10 €

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BA080120R.stp

Download

2500-1/2"-A x 1.0

Ball valve made of brass 2500-1/2"-A

Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0...40bar; Length 67mm; Flange ISO5211 F03; Square 9mm

Add to Cart

J4C20-0H9-Q11 x 1.0

Electrical actuator J4C20-0H9-Q11

Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 20Nm; Operating time 9s; Flange ISO5211 F03/04/05-star 11mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67

Add to Cart
