BA080-114-D0-01

Name: BA080-114-D0-01
Brand: STASTO
SKU: BA080-114-D0-01
Price: 318.3 EUR
Availability: InStock

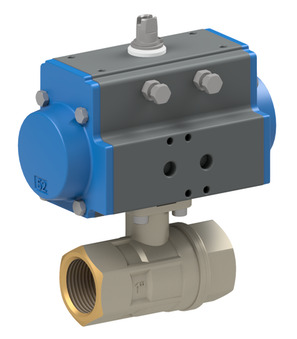

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-40bar; Length 102mm; Actuator PAD032-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.55 Kg
Short Itemnumber: BA080114D001

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 11/4"; nominal diameter 32mm; pressure range 0-40bar; length 102mm; actuator PAD032-H

318,30 € 318.3 EUR 318,30 €

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

No Specifications

2500-11/4" x 1.0

Ball valve made of brass 2500-11/4"

Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0...40bar; Length 102mm; Flange ISO5211 F03; Square 9mm

Add to Cart

PAD032-H x 1.0

Pneumatic actuator PAD032-H

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm

Add to Cart
