BA080-10-D0-01

BA080-10-D0-01

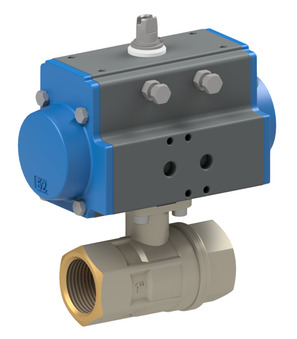

Ball valve with pneumatic actuator; Body, Ball Brass; Seals PTFE/FKM/EPDM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0-40bar; Length 90mm; Actuator PAD032-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.2 Kg
Short Itemnumber: BA08010D001
https://www.stasto.eu/web/image/product.template/141550/image_1920?unique=3970b0b

ball valve with pneumatic actuator; body, ball brass; seals PTFE/FKM/EPDM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1"; nominal diameter 25mm; pressure range 0-40bar; length 90mm; actuator PAD032-H

269,60 € 269.6 EUR 269,60 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of brass BA080-10-B
    BA080-10-B x 1.0
    Ball valve made of brass BA080-10-B
    Ball valve made of brass Series BA080-B; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 90mm; Flange ISO5211 F03; Square 9mm
    Add to Cart
    Pneumatic actuator PAD032-H
    PAD032-H x 1.0
    Pneumatic actuator PAD032-H
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Seals FKM; Temperature range -20...+150°C; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm
