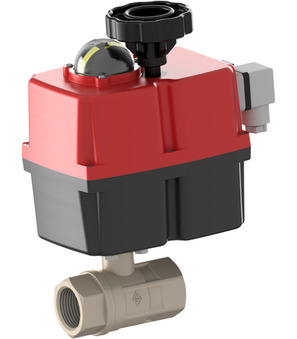

BA080-10-0R

Ball valve made of brass Series BA080-B; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 1"; Nominal diameter 25mm; Pressure range 0...40bar; Length 90mm; Flange ISO5211 F03; Square 9mm

Electrical actuator Series J4C; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 20Nm; Operating time 9s; Flange ISO5211 F03/04/05-star 11mm; Voltage 24...240VDC/AC (50-60Hz); Protection class IP67

Square adapter Series VK; 11X9; Length 10mm; Material Stahl
