Flanged ball valve with pneumatic actuator Series BA079-S Store

Flanged ball valve with pneumatic actuator BA079-40-S0

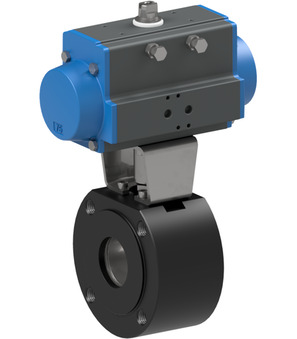

Name: Flanged ball valve with pneumatic actuator BA079-40-S0
Brand: STASTO
SKU: BA079-40-S0
Price: 732.1 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA079-S; For steam; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.48 Kg
Short Itemnumber:BA07940S0

flanged ball valve with pneumatic actuator series BA079-S; for steam; flange PN16; body steel; ball AISI 304; seals PTFE-graphite/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 40mm; length 63,5mm; actuator PAS1005

732,10 € 732.1 EUR 732,10 €

DN
- 40 mm
Length
- 63,5 mm
Actuator
- PAS1005

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

dimension
DN	40 mm
Length	63,5 mm
characteristics
Actuator	PAS1005

BA079-40-L-A x 1.0

Flanged ball valve BA079-40-L-A

Flanged ball valve Series BA079-L; For steam; ATEX II 2 G/D; Fire-safe; TA-Luft; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE-Graphite/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; Nominal diameter 40mm; Length 63,5mm

Add to Cart

PAS1005 x 1.0

Pneumatic actuator PAS1005

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm

Add to Cart

RI3031 x 1.0
