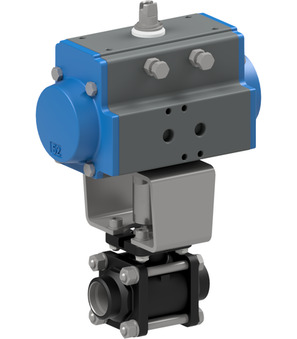

Ball valve with pneumatic actuator BA078-80-D0-A-03

Ball valve with pneumatic actuator BA078-80-D0-A-03

ball valve with pneumatic actuator series BA078-D0B/D01-A; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 80mm; pressure range steam 0…15bar; length 180mm; actuator PAD100; stem extension 200mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 22.24 Kg
Short Itemnumber: BA07880D0A03
https://www.stasto.eu/web/image/product.template/220883/image_1920?unique=bbc91d7

ball valve with pneumatic actuator series BA078-D0B/D01-A; ATEX II 2 G/D; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+198°C; nominal diameter 80mm; pressure range steam 0…15bar; length 180mm; actuator PAD100; stem extension 200mm

1.909,90 € 1909.9 EUR 1.909,90 €

price on request

  • DN
  • Length
  • Design
  • Pressure range
  • Pressure range Steam
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 80 mm
Length 180 mm
design
Design ATEX
pressure
Pressure range 0...16 bar
Pressure range Steam 0...15 bar
characteristics
Actuator PAD100

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA078-D0B/D01-A_EN.pdf
Download

ZIP
Datové listy
1
Datový list_kulový kohout s otočným pneumatickým pohonem série BA078-D0B/D01-A_CS.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA078-D0B/D01-A_DE.pdf
Download

ZIP
Adatlapok
1
Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA078-D0B/D01-A_HU.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA078-D0B/D01-A_PL.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA078-D0B/D01-A_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01-A_SRLATIN.pdf
Download
Ball valve made of steel 80-180
BA078-80-L-A x 1.0
Ball valve made of steel 80-180
Ball valve made of steel Series BA078-L-A; For steam; ATEX II 2 D/G; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 80mm; Length 180mm
Add to Cart
Pneumatic actuator PAD100
PAD100 x 1.0
Pneumatic actuator PAD100
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
