Ball valve with pneumatic actuator Series BA078-D0B/D01-A Store

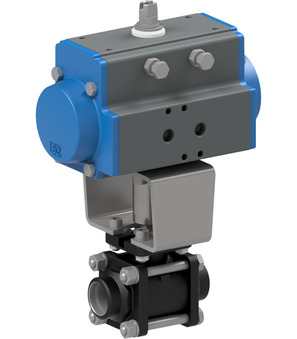

Ball valve with pneumatic actuator BA078-65-D0-A-01

Name: Ball valve with pneumatic actuator BA078-65-D0-A-01
Brand: STASTO
SKU: BA078-65-D0-A-01
Price: 1217.4 EUR
Availability: InStock

BA078-65-L-A
Ball valve made of steel Series BA078-L-A; For steam; ATEX II 2 D/G; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 65mm; Length 153mm
PAD100
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm
RI3003
Mounting bracket; F07/F07; 17-14

Intrastat No.: 84818081
Country of origin: Italy
Weight: 14.43 Kg
Short Itemnumber: BA07865D0A01

BA078-65-L-A
ball valve made of steel series BA078-L-A; for steam; ATEX II 2 D/G; full bore; three-parts type; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; pressure range steam 0...15bar; medium temperature -10...+198°C; nominal diameter 65mm; length 153mm
PAD100
pneumatic actuator series PAD; ATEX II 2 G/D; double acting; rotation angle 90°; according to ISO 5211/NAMUR; operating pressure range max. 8bar; diameter 100mm; flange ISO5211 F07/F10; female square 17mm; torque at 5,5bar 150Nm
RI3003
mounting bracket; F07/F07; 17-14

1.217,40 € 1217.4 EUR 1.217,40 €

DN
- 65 mm
Length
- 153 mm
Design
- ATEX
Pressure range
- 0...16 bar
Pressure range Steam
- 0...15 bar
Actuator
- PAD100

This combination does not exist.

Availability:

Add to cart

dimension
DN	65 mm
Length	153 mm
design
Design	ATEX
pressure
Pressure range	0...16 bar
Pressure range Steam	0...15 bar
characteristics
Actuator	PAD100

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA078-D0B/D01-A_SRLATIN.pdf

Download

BA078-65-L-A x 1.0

Ball valve made of steel BA078-65-L-A

Ball valve made of steel Series BA078-L-A; For steam; ATEX II 2 D/G; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 65mm; Length 153mm

Add to Cart

PAD100 x 1.0

Pneumatic actuator PAD100

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 150Nm

Add to Cart

RI3003 x 1.0

RI3003

Mounting bracket; F07/F07; 17-14

Add to Cart
