BA078-50-0L-01

Name: BA078-50-0L-01
Brand: STASTO
SKU: BA078-50-0L-01
Price: 1086.8 EUR
Availability: InStock

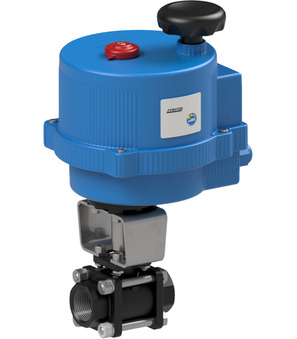

Ball valve with electrical actuator; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Compensation hole; Medium temperature -10...+160°C (Steam -10...+198°C); Nominal diameter 50mm; Pressure range 0…25bar; Pressure range Steam 0...15bar; Length 136mm; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.13 Kg
Short Itemnumber: BA078500L01

ball valve with electrical actuator; butt weld ends; body steel; ball AISI 304; seals PTFE-reinforced/FKM; compensation hole; medium temperature -10...+160°C (steam -10...+198°C); nominal diameter 50mm; pressure range 0…25bar; pressure range steam 0...15bar; length 136mm; operating time 27s; voltage 24VAC/DC

1.086,80 € 1086.8 EUR 1.086,80 €

This combination does not exist.

Availability:

Add to cart

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BA078500L01.stp

Download

BA078-50-L x 1.0

Ball valve made of steel BA078-50-L

Ball valve made of steel Series BA078-L; For steam; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 50mm; Length 136mm

Add to Cart

VB110-L x 1.0

Electrical actuator VB110-L

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67

Add to Cart

RI3031 x 1.0
