STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA078-15-S0

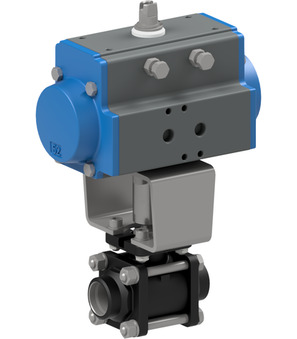

BA078-15-S0

BA078-15-S0

Ball valve with pneumatic actuator; For steam; Butt weld ends; Body Carbon steel A216-WCB; Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; ; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; Nominal diameter 15mm; Length 65mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.903 Kg
Short Itemnumber:BA07815S0
https://www.stasto.eu/web/image/product.template/162845/image_1920?unique=3970b0b

ball valve with pneumatic actuator; for steam; butt weld ends; body carbon steel A216-WCB; ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; ; medium temperature -20...+198°C; pressure range steam 0...15bar; nominal diameter 15mm; length 65mm; actuator PAS0525

355,10 € 355.1 EUR 355,10 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of steel BA078-15-L
    BA078-15-L x 1.0
    Ball valve made of steel BA078-15-L
    Ball valve made of steel Series BA078-L; For steam; Full bore; Three-parts type; Butt weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -10...+198°C; Nominal diameter 15mm; Length 65mm
    Add to Cart
    Pneumatic actuator PAS0525
    PAS0525 x 1.0
    Pneumatic actuator PAS0525
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
    Add to Cart
