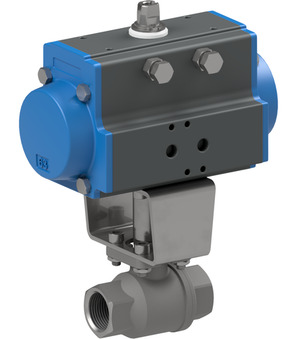

Ball valve with pneumatic actuator BA069-38-S0-A | STASTO Automation

dimension
Female thread	RP 3/8"
DN	10 mm
Length	55 mm
design
Design	ATEX
pressure
Pressure range	0...140 bar
characteristics
Actuator	PAS0525

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

2

Data sheet_Ball valve with pneumatic actuator Series BA069-D_EN.pdf

Data sheet_Ball valve with pneumatic actuator Series BA069-S_EN.pdf

CAD / 3D

1

CADSTEP_BA06938S0A.stp

Datové listy

2

Datový list_kulový kohout s otočným pneumatickým pohonem série BA069-D_CS.pdf

Datový list_kulový kohout s otočným pneumatickým pohonem série BA069-S_CS.pdf

Data Sheets

1

Datablad_Kugleventil med pneumatisk drejedrev Serie BA069-D_DA_DK.pdf

Datenblätter

2

Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA069-D_DE.pdf

Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA069-S_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA069-D_EL_GR.pdf

Data Sheets

1

Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA069-D_ES.pdf

Data Sheets

1

Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA069-D_FI.pdf

Data Sheets

1

Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA069-D_FR.pdf

Data Sheets

1

Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA069-D_HR.pdf

Adatlapok

2

Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA069-D_HU.pdf

Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA069-S_HU.pdf

Data Sheets

1

Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA069-D_IT.pdf

Data Sheets

1

Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA069-D_NB_NO.pdf

Data Sheets

1

Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA069-D_NL.pdf

Karty katalogowe

2

Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA069-D_PL.pdf

Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA069-S_PL.pdf

Data Sheets

1

Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA069-D_RO.pdf

Podatkovni listi

2

Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA069-D_SL.pdf

Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA069-S_SL.pdf

Data Sheets

2

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA069-D_SRLATIN.pdf

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA069-S_SRLATIN.pdf

Data Sheets

1

Datablad_Kulventil med pneumatiskt vriddon Serie BA069-D_SV.pdf

Ball valve made of stainless steel BA069-38-L-A

BA069-38-L-A x 1.0

Ball valve made of stainless steel BA069-38-L-A

Ball valve made of stainless steel Series BA069-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-Graphite reinforced/FKM; Medium temperature -20...+160°C; RP 3/8"; Nominal diameter 10mm; Pressure range 0...140bar; Length 55mm

Pneumatic actuator PAS0525

PAS0525 x 1.0

Pneumatic actuator PAS0525

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm

RI3782 x 1.0

RI3782

Mounting bracket; F03/F03,11-5
