STASTO Allgemeine Preisliste (EUR)
BA069-12-S0

BA069-12-S0

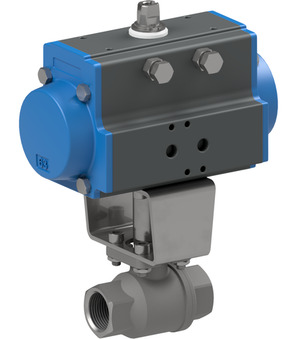

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0..140bar; length 66mm; actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.72 Kg
Short Itemnumber: BA06912S0
https://www.stasto.eu/web/image/product.template/171494/image_1920?unique=0f10850

ball valve with pneumatic actuator; female thread; housing, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/2"; nominal diameter 15mm; pressure range 0..140bar; length 66mm; actuator PAS0525

324,00 € 324.0 EUR 324,00 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0..140bar
Brand STASTO
Pressure range 0..140bar
Brand STASTO
Ball valve made of stainless steel BA069-12-L
BA069-12-L x 1.0 Pcs
Ball valve made of stainless steel BA069-12-L
Ball valve made of stainless steel Series BA069; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0…140bar; Length 66mm
Pneumatic actuator PAS0525
PAS0525 x 1.0 Pcs
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
RI3782 x 1.0 Pcs
RI3782
Mounting bracket; F03/F03,11-5
