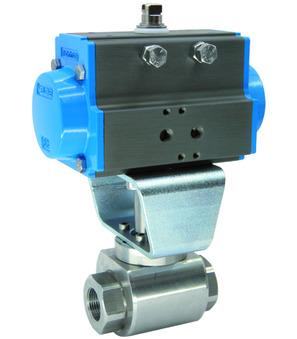

Ball valve with pneumatic actuator BA066-14-D0-A

Ball valve with pneumatic actuator BA066-14-D0-A

Ball valve with pneumatic actuator Series BA066; ATEX zone 1 and 21; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -10...+100°C; For liquids; G 1/4"; Nominal diameter 10mm; Pressure range 0…400bar; Length 73mm; Actuator PAD063

Intrastat No.: 84818081
Country of origin: Germany
Weight: 2.7 Kg
Short Itemnumber: BA06614D0A
https://www.stasto.eu/web/image/product.template/157921/image_1920?unique=bcfc56d

ball valve with pneumatic actuator series BA066; ATEX zone 1 and 21; female thread; body, ball AISI 316Ti; seals PEEK/FKM; double acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -10...+100°C; for liquids; G 1/4"; nominal diameter 10mm; pressure range 0…400bar; length 73mm; actuator PAD063

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Female thread
  • DN
  • Length
  • Design
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...400 bar
Female thread G 1/4"
DN 10 mm
Length 73 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...400 bar
Female thread G 1/4"
DN 10 mm
Length 73 mm
Design ATEX
Brand STASTO

BA066-14-D0-A

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
BA066-14-B-A x 1.0 Pcs
High pressure ball valve BA066-14-B-A
High pressure ball valve Series BA066; ATEX zone 0 and 20; Bare shaft; Female thread; Body, Ball 1.4571; Seals PEEK/FKM; For liquids; Medium temperature -20...+100°C; Connection 1/4"; Nominal diameter 10mm; Pressure range 0…400bar; Length 73mm; Flange ISO5211 F03; Square 9mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
04806007007 x 1.0 Pcs
04806007007
Mounting bridge; Zinc plated steel; Flange 1: F03/F04mm; Flange 2: F05; Height 50mm; Mounting table for RI3030
A4/457/04 x 1.0 Pcs
A4/457/04
Bolt; 1.4305; Diameter 20mm; Height of the bolt 47mm; Male square 14mm; Height of the male square 13mm; Female square 9mm; Height of the female square 8mm
