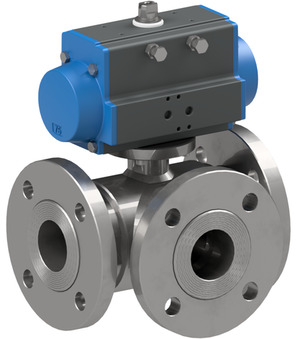

Flanged ball valve with pneumatic actuator BA056-40-2S0-01

Flanged ball valve with pneumatic actuator BA056-40-2S0-01

Flanged ball valve with pneumatic actuator Series BA055, BA056; 3-way-type; Sealing on three ports; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 200mm; Pressure range 0...40bar; Flange PN40; Actuator PAS1155-A; Ball T; Flow path 02; Inverse direction of rotation

Intrastat No.: 84818081
Country of origin: Italy
Weight: 23.56 Kg
Short Itemnumber: BA056402S001
https://www.stasto.eu/web/image/product.template/179483/image_1920?unique=e5e4a60

flanged ball valve with pneumatic actuator series BA055, BA056; 3-way-type; sealing on three ports; body AISI 316L polished; ball AISI 316L; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 40mm; length 200mm; pressure range 0...40bar; flange PN40; actuator PAS1155-A; ball T; flow path 02; inverse direction of rotation

2.465,30 € 2465.3 EUR 2.465,30 €

price on request

  • DN
  • Length
  • Flange
  • Ball
  • Pressure range
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 40 mm
Length 200 mm
Flange PN40
Designs
Ball T
pressure
Pressure range 0...40 bar
characteristics
Actuator PAS1155
Flanged ball valve BA056-40-B
BA056-40-B x 1.0
Flanged ball valve BA056-40-B
Flanged ball valve Series BA055, BA056; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 40mm; DN ball 40mm; Pressure range 0...40bar; Flange PN40; Length 200mm; Ball T; Flange ISO5211 F05; Square 14mm
Add to Cart
Pneumatic actuator PAS1155-A
PAS1155-A x 1.0
Pneumatic actuator PAS1155-A
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Inverse direction of rotation; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm
Add to Cart
IV/00028/09 x 1.0
IV/00028/09
Bolt; 1.4305; Diameter 30mm; Height of the bolt 59mm; Male square 17mm; Height of the male square 18mm; Female square 14mm; Height of the female square 14mm
Add to Cart
