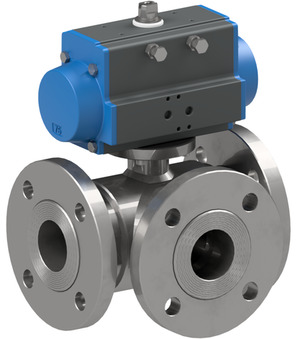

Flanged ball valve with pneumatic rotary actuator BA056-100-3S0

Name: Flanged ball valve with pneumatic rotary actuator BA056-100-3S0
Brand: STASTO
SKU: BA056-100-3S0
Price: 8816.6 EUR
Availability: InStock

Flanged ball valve with pneumatic rotary actuator Series BA055, BA056; 3-way version; Three-shell sealing; Housing 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Single-acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Installation length 300mm; Print area 0…16bar; Flange PN16; Drive PAS1605; Ball bore T; Switching mode 03

Intrastat No.: 84818081
Country of origin: Italy
Weight: 79.55 Kg
Short Itemnumber: BA0561003S0

8.816,60 € 8816.6 EUR 8.816,60 €

DN
- 100 mm
Length
- 300 mm
Flange
- PN16
Ball
- T
Pressure range
- 0...16 bar
Actuator
- PAS1605

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	100 mm
Length	300 mm
Flange	PN16
Designs
Ball	T
pressure
Pressure range	0...16 bar
characteristics
Actuator	PAS1605

BA056-100-B-01 x 1.0

Flanged ball valve BA056-100-B-01

Flanged ball valve Series BA055, BA056; Bare shaft; 3-way-type; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals PTFE/FKM; Sealing on three ports; Medium temperature -20...+160°C; Nominal diameter 100mm; DN ball 100mm; Pressure range 0...16bar; Flange PN16; Length 300mm; Ball T; Flange ISO5211 F10; Square 22mm

Add to Cart

PAS1605 x 1.0

Pneumatic actuator PAS1605

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 160mm; Flange ISO5211 F10/F12; Female square 27mm; Torque at 5,5bar 202Nm

Add to Cart
