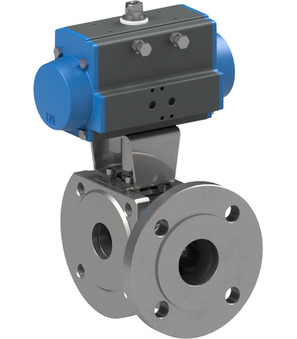

Flanged ball valve with pneumatic actuator BA053-50-D0-02

Name: Flanged ball valve with pneumatic actuator BA053-50-D0-02
Brand: STASTO
SKU: BA053-50-D0-02

Flanged ball valve with pneumatic actuator; With heating jacket; 3-way-type; Sealing on two sides; Pressure inlet just in front; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Reduced bore; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 50mm; DN ball 40mm; Length 82mm; Actuator PAD075; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber: BA05350D002

flanged ball valve with pneumatic actuator; with heating jacket; 3-way-type; sealing on two sides; pressure inlet just in front; flange PN16; body, ball AISI 316; seals PTFE/FKM; reduced bore; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 50mm; DN ball 40mm; length 82mm; actuator PAD075; ball L

On request

DN
- 50 mm
Length
- 82 mm
DN ball
- 40 mm
Ball
- L
Actuator
- PAD075
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Technical specifications

Pressure range	0...16bar
DN	50 mm
DN ball	40 mm
Length	82 mm

All specifications (6)

Spezifikationen
Spare Parts

Pressure range	0...16bar
DN	50 mm
DN ball	40 mm
Length	82 mm
Ball	L
Brand	STASTO

BA053-50-L-02 x 1.0 Pcs

BA053-50-L-02

Flanged ball valve; 3-way-type; With Heating jacket;Sealing on two sides; Pressure inlet just in front; Reduced bore; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 50mm; DN ball 40mm; Length 82mm; Ball L; Connections Heating jacket G 3/4"

PAD075 x 1.0 Pcs

Pneumatic actuator PAD075

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 75mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 66Nm

RI3009 x 1.0 Pcs
