BA052-50-T0-01

Name: BA052-50-T0-01
Brand: STASTO
SKU: BA052-50-T0-01

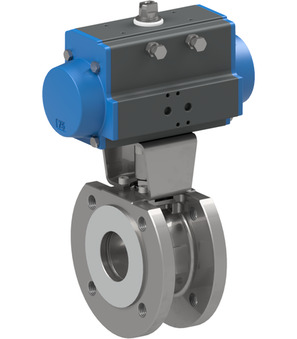

Flanged ball valve with pneumatic actuator; Flange PN40; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0…40bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1155; Compensation hole at the inlet; NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.91 Kg
Short Itemnumber: BA05250T001

flanged ball valve with pneumatic actuator; flange PN40; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0…40bar; nominal diameter 50mm; length 82mm; actuator PAS1155; compensation hole at the inlet; NO

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA052-50-L-01 x 1.0

BA052-50-L-01

Flanged ball valve; Flange PN40; Full bore; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm; Compensation hole at the inlet

Add to Cart

PAS1155-B x 1.0

PAS1155-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Pinion turned by 90°; Torque at 5,5bar 71,1Nm

Add to Cart

RI3009 x 1.0
