BA051-50-S0-A-02

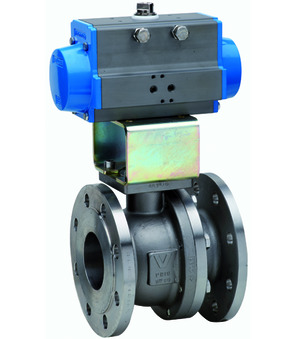

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1 R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FK; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm; Actuator PAS1255; Free of oil and grease for oxygen

Intrastat No.: 84818081
Country of origin: Italy
Short Itemnumber:BA05150S0A02

flanged ball valve with pneumatic actuator; ATEX II 2 G/D; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1 R27; body, ball AISI 316; seals PTFE/Graphoil/FK; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0...40bar; flange PN40; length 150mm; actuator PAS1255; free of oil and grease for oxygen

1.872,30 € 1872.3 EUR 1.872,30 €

Design
- ATEX

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

Design

ATEX

BA051-50-LLD-A-02 x 1.0

Flanged ball valve BA051-50-LLD-A-02

Flanged ball valve Series BA051-A; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Free of oil and grease for oxygen; Nominal diameter 50mm; Pressure range 0...40bar; Flange PN40; Length 150mm

Add to Cart

PAS1255 x 1.0

Pneumatic actuator PAS1255

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm

Add to Cart

RI3522 x 1.0
