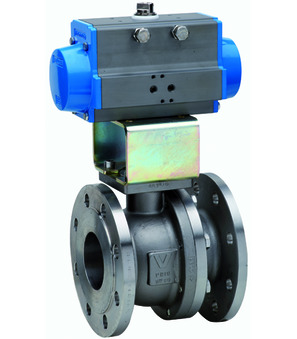

BA051-25-S0-A-ABS54-PI08

BA051-25-S0-A-ABS54-PI08

BA051-25-S0-A
Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 25mm; Pressure range 0...40bar; Flange PN40; Length 125mm; Actuator PAS0635
ABS54-PI08
Mounted pilot valve; Speed control; Suitable for Pneumatically operated butterfly valve; Standard coil C001; Connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); Actuator PAD/PAS052-270; Hose connection Push-in fitting 8mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.03 Kg
Short Itemnumber:BA05125S0AABS54PI08
https://www.stasto.eu/web/image/product.template/211279/image_1920?unique=3970b0b

BA051-25-S0-A
flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 25mm; pressure range 0...40bar; flange PN40; length 125mm; actuator PAS0635
ABS54-PI08
mounted pilot valve; speed control; suitable for pneumatically operated butterfly valve; standard coil C001; connector size 22mm; 5/2-way solenoid valve - NAMUR type (NM52W1S-PR); actuator PAD/PAS052-270; hose connection push-in fitting 8mm

942,70 € 942.7 EUR 942,70 €

price on request

  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 25 mm
Length 125 mm
Flange PN40
design
Design ATEX
pressure
Pressure range 0...40 bar
characteristics
Actuator PAS0635
