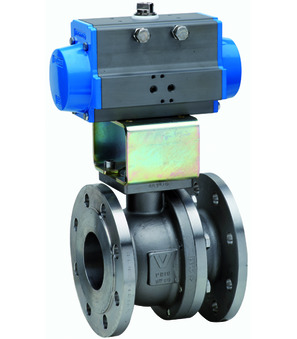

Flanged ball valve with pneumatic actuator BA051-15-S0-A

Flanged ball valve with pneumatic actuator BA051-15-S0-A

Flanged ball valve with pneumatic actuator Series BA051; Fire-Safe/Antistatik According to ATEX/TA−Luft; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...40bar; Flange PN40; Length 115mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.04 Kg
Short Itemnumber: BA05115S0A
https://www.stasto.eu/web/image/product.template/137881/image_1920?unique=7d94123

flanged ball valve with pneumatic actuator series BA051; Fire-Safe/Antistatik according to ATEX/TA−Luft; length according to EN558−1R27; body, ball AISI 316; seals PTFE/Graphoil/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0...40bar; flange PN40; length 115mm; actuator PAS0525

655,90 € 655.9 EUR 655,90 €

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Flange
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 15 mm
Flange PN40
Length 115 mm
All specifications (5)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 15 mm
Flange PN40
Length 115 mm
Design ATEX

BA051-15-S0-A

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve 760000-15
760000-15 x 1.0 Pcs
Flanged ball valve 760000-15
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm
Pneumatic actuator PAS0525
PAS0525 x 1.0 Pcs
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
RI3519 x 1.0 Pcs
RI3519
Mounting bracket; F05/F03-F04; Bolt 11-7
