BA049-80-0H-01

BA049-80-0H-01

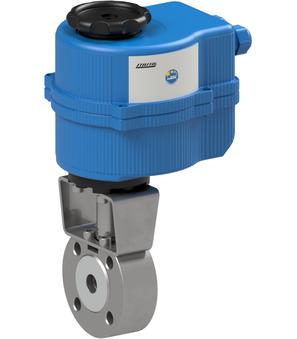

Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; DN 80mm; Pressure range 0-16bar; Length 122mm; Operating time 27s; Voltage 100-240VAC; VB190-H

Intrastat No.: 84818081
Country of origin: Italy
Weight: 19.5 Kg
Short Itemnumber: BA049800H01
https://www.stasto.eu/web/image/product.template/153005/image_1920?unique=3970b0b

flanged ball valve with electrical actuator; flange PN16; body, ball AISI 316; seals PTFE/FKM; medium temperature -20...+160°C; DN 80mm; pressure range 0-16bar; length 122mm; operating time 27s; voltage 100-240VAC; VB190-H

2.018,50 € 2018.5 EUR 2.018,50 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Flanged ball valve 721000-80
    721000-80 x 1.0
    Flanged ball valve 721000-80
    Flanged ball valve Series 721000; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm
    Add to Cart
    Electrical actuator VB190-H
    VB190-H x 1.0
    Electrical actuator VB190-H
    Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100-240VAC; Protection class IP67
