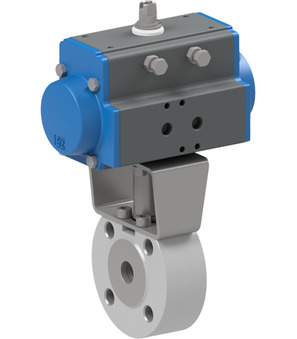

Flanged ball valve with pneumatic actuator BA049-40-S0-A

Flanged ball valve with pneumatic actuator BA049-40-S0-A

Flanged ball valve with pneumatic actuator Series BA049-S0-A; ATEX II 2G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 40mm; Length 63,5mm; Actuator PAS0855

Intrastat No.: 84818081
Country of origin: Italy
Weight: 9.63 Kg
Short Itemnumber: BA04940S0A
https://www.stasto.eu/web/image/product.template/147329/image_1920?unique=108ddfa

flanged ball valve with pneumatic actuator series BA049-S0-A; ATEX II 2G/D; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 40mm; length 63,5mm; actuator PAS0855

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 40 mm
Length 63,5 mm
design
Design ATEX
characteristics
Actuator PAS0855
Flanged ball valve BA049-40-L-A
BA049-40-L-A x 1.0
Flanged ball valve BA049-40-L-A
Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Length 63,5mm
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
Add to Cart
