BA049-15-T0-A

Name: BA049-15-T0-A
Brand: STASTO
SKU: BA049-15-T0-A
Price: 578.4 EUR
Availability: InStock

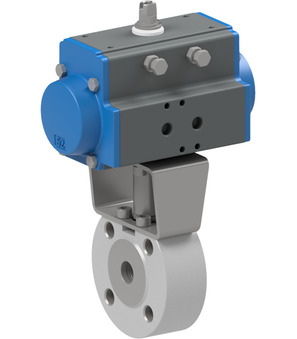

Flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator; ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; Length 35mm; Actuator PAS0635; Safety position NO

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.665 Kg
Short Itemnumber: BA04915T0A

flanged ball valve with pneumatic actuator; ATEX II 2 G/D c T3; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator; ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 15mm; length 35mm; actuator PAS0635; safety position NO

578,40 € 578.4 EUR 578,40 €

Design
- ATEX

This combination does not exist.

Availability:

Add to cart

Design

ATEX

Data sheets, Instructions, 3D-files and Certificates...

ZIP

Datenblätter

Datenblatt_BA049-15-T0-A_DE.pdf

Download

No documents are available for this language. Please open "Other languages."

BA049-15-L-A x 1.0

Flanged ball valve BA049-15-L-A

Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm

Add to Cart

PAS0635-B x 1.0

PAS0635-B

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Pinion turned by 90°; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm

Add to Cart

RI3780 x 1.0
