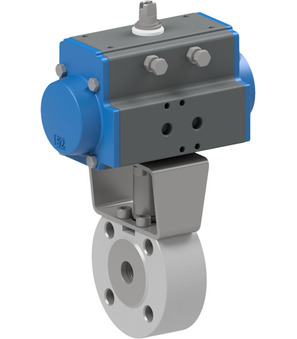

Flanged ball valve with pneumatic actuator BA049-15-S0-A

Flanged ball valve with pneumatic actuator BA049-15-S0-A

Flanged ball valve with pneumatic actuator Series BA049-S0-A; ATEX II 2G/D; Flange PN16; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 15mm; Length 35mm; Actuator PAS0635

Intrastat No.: 84818081
Country of origin: Italy
Weight: 3.66 Kg
Short Itemnumber: BA04915S0A
https://www.stasto.eu/web/image/product.template/151734/image_1920?unique=108ddfa

flanged ball valve with pneumatic actuator series BA049-S0-A; ATEX II 2G/D; flange PN16; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 15mm; length 35mm; actuator PAS0635

578,40 € 578.4 EUR 578,40 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 15 mm
Length 35 mm
design
Design ATEX
characteristics
Actuator PAS0635

Data sheets, Instructions, 3D-files and Certificates...

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Druckluftdrehantrieb BA049-15-S0-A_DE.pdf
Download
No documents are available for this language. Please open "Other languages."
Flanged ball valve BA049-15-L-A
BA049-15-L-A x 1.0
Flanged ball valve BA049-15-L-A
Flanged ball valve Series BA049-A; ATEX II 2 G/D; Flange PN16, Full bore; Body, Ball 1.4401; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 15mm; Length 35mm
Add to Cart
Pneumatic actuator PAS0635
PAS0635 x 1.0
Pneumatic actuator PAS0635
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 10,6Nm
