Flanged ball valve with pneumatic actuator Series BA045-S Store

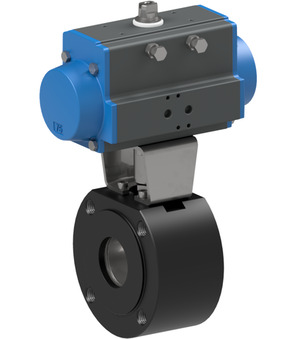

Flanged ball valve with pneumatic actuator BA045-50-S0

Name: Flanged ball valve with pneumatic actuator BA045-50-S0
Brand: STASTO
SKU: BA045-50-S0
Price: 1007.7 EUR
Availability: InStock

Flanged ball valve with pneumatic actuator Series BA045-S0; Flange PN40; Body Steel; Ball 1.4301; PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...40bar; Nominal diameter 50mm; Length 82mm; Actuator PAS1155

Intrastat No.: 84818081
Country of origin: Italy
Weight: 20.86 Kg
Short Itemnumber:BA04550S0

flanged ball valve with pneumatic actuator series BA045-S0; flange PN40; body steel; ball AISI 304; PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...40bar; nominal diameter 50mm; length 82mm; actuator PAS1155

1.007,70 € 1007.7 EUR 1.007,70 €

Valve interface Namur
- -
DN
- 50 mm
Length
- 82 mm
Connector size
- -
Design
- -
Voltage
- -
Pressure range
- -
Coil
- -
Actuator
- PAS1155

This combination does not exist.

Availability:

Add to cart

Specifications
Spare Parts

dimension
DN	50 mm
Length	82 mm
characteristics
Actuator	PAS1155

720008-50 x 1.0

Flanged ball valve 720008-50

Flanged ball valve Series 720008; Flange PN40, Full bore; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Pressure range 0...40bar; Medium temperature -20...+160°C; Nominal diameter 50mm; Length 82mm

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

RI3009 x 1.0
