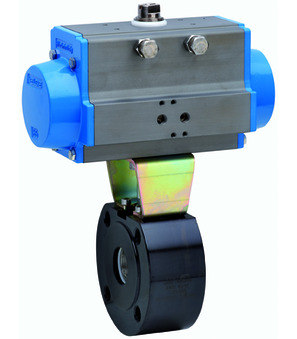

Flanged ball valve with pneumatic actuator BA043-80-S0-A

Flanged ball valve with pneumatic actuator BA043-80-S0-A

Flanged ball valve with pneumatic actuator Series BA043; ATEX II 2 G/D; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 122mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 36.12 Kg
Short Itemnumber: BA04380S0A
https://www.stasto.eu/web/image/product.template/139251/image_1920?unique=f514644

flanged ball valve with pneumatic actuator series BA043; ATEX II 2 G/D; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 80mm; length 122mm; actuator PAS1255

1.431,60 € 1431.6 EUR 1.431,60 €

Not Available For Sale

excl. tax
  • DN
  • DN
  • Length
  • Length
  • Design
  • Actuator
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 25 mm
Length 46 mm
DN 80 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 25 mm
Length 46 mm
DN 80 mm
Length 122 mm
Design ATEX

BA043-80-S0-A

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Flanged ball valve BA043-80-L-A
BA043-80-L-A x 1.0 Pcs
Flanged ball valve BA043-80-L-A
Flanged ball valve Series BA043-L-A; ATEX II 2 G/D; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Length 122mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
RI3010 x 1.0 Pcs
RI3010
Mounting bracket; F10-F07; Bolt 22-14
