Flanged ball valve with pneumatic actuator BA043-125-D0

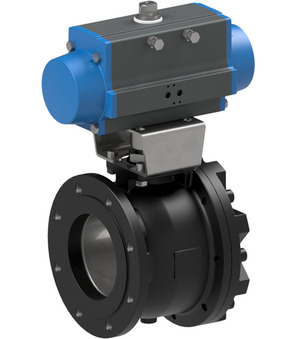

Flanged ball valve with pneumatic actuator BA043-125-D0

Flanged ball valve with pneumatic actuator Series BA043; Flange PN16; Body Steel; Ball 1.4301; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...16bar; Nominal diameter 125mm; Length 196mm; Actuator PAD115

Intrastat No.: 84818081
Country of origin: Italy
Weight: 51.19 Kg
Short Itemnumber: BA043125D0
https://www.stasto.eu/web/image/product.template/158761/image_1920?unique=d975ddd

flanged ball valve with pneumatic actuator series BA043; flange PN16; body steel; ball AISI 304; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...16bar; nominal diameter 125mm; length 196mm; actuator PAD115

2.214,50 € 2214.5 EUR 2.214,50 €

Not Available For Sale

excl. tax
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16bar
DN 125 mm
Length 196 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...16bar
DN 125 mm
Length 196 mm

BA043-125-D0

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Flanged ball valve BA043-125-L
BA043-125-L x 1.0 Pcs
Flanged ball valve BA043-125-L
Flanged ball valve Series BA043-L; Flange PN16, Full bore; Body Steel; Ball 1.4301; Seals PTFE/FKM; Pressure range 0...16bar; Medium temperature -20...+160°C; Nominal diameter 125mm; Length 196mm
Pneumatic actuator PAD115
PAD115 x 1.0 Pcs
Pneumatic actuator PAD115
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 249Nm
RI3036 x 1.0 Pcs
RI3036
Mounting bracket; F07/F10-F10; Bolt 22-18
