Flanged ball valve with electrical actuator BA040-65-QH

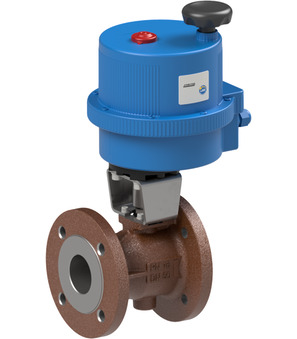

Flanged ball valve with electrical actuator BA040-65-QH

Flanged ball valve with electrical actuator Series BA040; Length According to EN558−1R24; Flansch PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Medium temperature -10...+120°C; Pressure range 0…16bar; DN 65mm; Length 170mm; Operating time 27s; Voltage 100-240VAC; NO-Accumulator for safety position

Intrastat No.: 84818081
Country of origin: Italy
Weight: 18.06 Kg
Short Itemnumber: BA04065QH
https://www.stasto.eu/web/image/product.template/216263/image_1920?unique=bcfc56d

flanged ball valve with electrical actuator series BA040; length according to EN558−1R24; Flansch PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; medium temperature -10...+120°C; pressure range 0…16bar; DN 65mm; length 170mm; operating time 27s; voltage 100-240VAC; NO-accumulator for safety position

1.445,50 € 1445.5 EUR 1.445,50 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 65 mm
Length 170 mm
Operating time 27 s
Voltage 24VAC/DC
Documents
Data sheets, drawings and CAD files
DN 65 mm
Length 170 mm
Operating time 27 s
Voltage 24VAC/DC

BA040-65-QH

Documents

2 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
BA040-65-L-01 x 1.0 Pcs
Flanged ball valve BA040-65-L-01
Flanged ball valve Series BA040-L-F; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 65mm; Length 170mm; Length EN558-1R14; Flange ISO5211 F07
VB110-H-AKKU-N0 x 1.0 Pcs
Electrical actuator VB110-H-AKKU-N0
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 100...240VAC; Function NO
RI3003 x 1.0 Pcs
RI3003
Mounting bracket; F07/F07; 17-14
