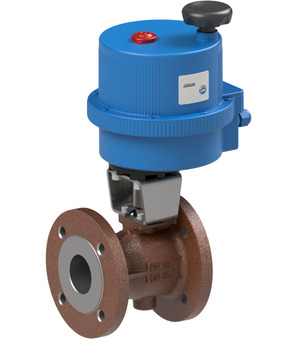

Flanged ball valve with electrical actuator BA040-100-0L

Flanged ball valve with electrical actuator BA040-100-0L

Flanged ball valve with electrical actuator Series BA040; Length According to EN558−1R24; Flansch PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Medium temperature -10...+120°C; Pressure range 0…16bar; DN 100mm; Length 190mm; Operating time 27s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 29.82 Kg
Short Itemnumber: BA0401000L
https://www.stasto.eu/web/image/product.template/134643/image_1920?unique=01498ce

flanged ball valve with electrical actuator series BA040; length according to EN558−1R24; Flansch PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; medium temperature -10...+120°C; pressure range 0…16bar; DN 100mm; length 190mm; operating time 27s; voltage 24VAC/DC

1.459,60 € 1459.6 EUR 1.459,60 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

DN 100 mm
Length 190 mm
Operating time 27 s
Voltage 24VAC/DC
Documents
Data sheets, drawings and CAD files
DN 100 mm
Length 190 mm
Operating time 27 s
Voltage 24VAC/DC

BA040-100-0L

Documents

3 Documents 7 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Flanged ball valve 730003-100
730003-100 x 1.0 Pcs
Flanged ball valve 730003-100
Flanged ball valve Series 730003; Flange PN16, Full bore; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Pressure range 0...16bar; Medium temperature -10...+120°C; Nominal diameter 100mm; Length 190mm; Length EN558-1R14
Electrical actuator VB190-L
VB190-L x 1.0 Pcs
Electrical actuator VB190-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 190Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
RI3004 x 1.0 Pcs
RI3004
Mounting bracket For Ball valve; F10/F07-F10; Bolt 17-18
