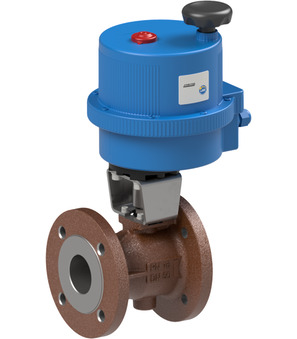

Flanged ball valve with electrical actuator BA040-050-S0-ABS53-C001-03-C002-31-6-EB0X01

Flanged ball valve with electrical actuator BA040-050-S0-ABS53-C001-03-C002-31-6-EB0X01

BA040-050-S0
Flanged ball valve with pneumatic actuator Series BA040; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 150mm; Length EN558-1R14; Actuator PAS1005
ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic

Flanschkugelhahn mit Druckluftdrehantrieb Serie BA040
Flanschkugelhahn mit Druckluftdrehantrieb Serie BA040
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 16.348 Kg
Short Itemnumber: BA040050S0ABS53C00103C002316EB0X01
https://www.stasto.eu/web/image/product.template/184401/image_1920?unique=8acb53c

BA040-050-S0
flanged ball valve with pneumatic actuator series BA040; flange PN16; body cast iron EN-GJL-250; ball AISI 304; seals PTFE/NBR; single acting actuator; control pressure 5,5...8bar; medium temperature -10...+120°C; pressure range 0...16bar; nominal diameter 50mm; length 150mm; length EN558-1R14; actuator PAS1005
ABS53
mounted pilot valve series ABS; NAMUR; silencer; standard coil C001; connector size 22mm; 3/2-way-NAMUR-solenoid valve (NM32W1S-PR); actuator PAS052-270
C001-03
coil type C001; connector size 22mm; voltage 24VDC / 48V/50-60Hz
C002-31-6
connector; connector size 22mm; Standard; voltage 0-250VAC/DC
EB0X01
mounted limit switch box; IP65; 2 micro switches; suitable for actuators PAD/PAS052-270; switching capacity 4A/250VAC-1A/24VDC; switch type Crouzet 831613; contact material silver-nickel; material of case plastic

1.058,70 € 1058.7 EUR 1.058,70 €

Not Available For Sale

excl. tax
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...16 bar
DN 50 mm
Length 150 mm
Voltage 24VDC / 48V/50-60Hz
All specifications (8)
Documents
Data sheets, drawings and CAD files
Pressure range 0...16 bar
DN 50 mm
Length 150 mm
Voltage 24VDC / 48V/50-60Hz
Design Standard
Switch type Crouzet 831613
Contact material Silver-nickel
Material of case Plastic

BA040-050-S0-ABS53-C001-03-C002-31-6-EB0X01

Documents

16 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

6

Declarations of Conformity

4

CAD / 3D

5
Danish / Dansk
ZIP

Data Sheets

6

CAD / 3D

5
German / Deutsch
ZIP

Data Sheets

6

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Greek / Ελληνικά
ZIP

Data Sheets

6

CAD / 3D

5
English
ZIP

Data Sheets

6

Assembly and Operating Instructions

1

Declarations of Conformity

4

CAD / 3D

5
Spanish / Español
ZIP

Data Sheets

6

CAD / 3D

5
Finnish / Suomi
ZIP

Data Sheets

6

CAD / 3D

5
French / Français
ZIP

Data Sheets

6

CAD / 3D

5
Croatian / hrvatski jezik
ZIP

Data Sheets

6

CAD / 3D

5
Hungarian / Magyar
ZIP

Data Sheets

6

Declarations of Conformity

4

CAD / 3D

5
Italian / Italiano
ZIP

Data Sheets

6

CAD / 3D

5
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

6

CAD / 3D

5
Dutch / Nederlands
ZIP

Data Sheets

6

CAD / 3D

5
Polish / Język polski
ZIP

Data Sheets

6

Declarations of Conformity

4

CAD / 3D

5
Romanian / română
ZIP

Data Sheets

6

CAD / 3D

5
Slovenian / slovenščina
ZIP

Data Sheets

6

Declarations of Conformity

4

CAD / 3D

5
Serbian (Latin) / srpski
ZIP

Data Sheets

6

Declarations of Conformity

4

CAD / 3D

5
Swedish / Svenska
ZIP

Data Sheets

6

CAD / 3D

5
Flanged ball valve with pneumatic actuator BA040-050-S0
BA040-050-S0 x 1.0 Pcs
Flanged ball valve with pneumatic actuator BA040-050-S0
Flanged ball valve with pneumatic actuator Series BA040; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 150mm; Length EN558-1R14; Actuator PAS1005
Mounted pilot valve ABS53
ABS53 x 1.0 Pcs
Mounted pilot valve ABS53
Mounted pilot valve Series ABS; NAMUR; Silencer; Standard coil C001; Connector size 22mm; 3/2-way-NAMUR-Solenoid valve (NM32W1S-PR); Actuator PAS052-270
C001-03
C001-03 x 1.0 Pcs
C001-03
Coil Type C001; Connector size 22mm; Voltage 24VDC / 48V/50-60Hz
C002-31-6
C002-31-6 x 1.0 Pcs
C002-31-6
Connector; Connector size 22mm; Standard; Voltage 0-250VAC/DC
EB0X01
EB0X01 x 1.0 Pcs
EB0X01
Mounted limit switch box; IP65; 2 Micro switches; Suitable for Actuators PAD/PAS052-270; Switching capacity 4A/250VAC-1A/24VDC; Switch type Crouzet 831613; Contact material Silver-nickel; Material of case Plastic
