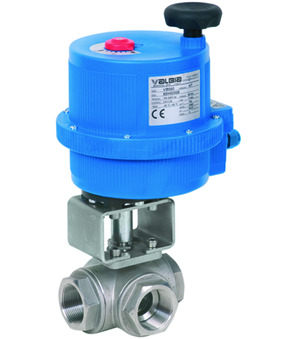

Ball valve with electrical actuator BA038-38-0H

Ball valve with electrical actuator BA038-38-0H

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 3/8"; DN 11mm; Pressure range 0...64bar; Length 69,4mm; Operating time 10s; Voltage 100-240VAC; Ball T

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.43 Kg
Short Itemnumber: BA038380H
https://www.stasto.eu/web/image/product.template/152658/image_1920?unique=bbc91d7

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 3/8"; DN 11mm; pressure range 0...64bar; length 69,4mm; operating time 10s; voltage 100-240VAC; ball T

693,40 € 693.4 EUR 693,40 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 3/8"
DN 11 mm
Length 69,4 mm
Designs
Ball T
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB015H
Operating time 10 s
Ball valve made of stainless steel BA038-38-L
BA038-38-L x 1.0
Ball valve made of stainless steel BA038-38-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 3/8"; Nominal diameter 11mm; Pressure range 0...64bar; Length 69,4mm; Ball T
Add to Cart
Electrical actuator VB015-H
VB015-H x 1.0
Electrical actuator VB015-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP65
