BA038-20-2S0

Name: BA038-20-2S0
Brand: STASTO
SKU: BA038-20-2S0

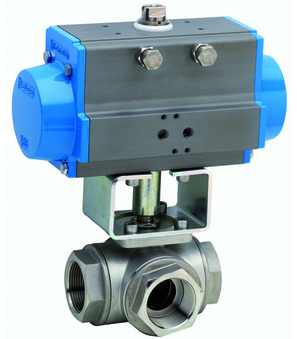

Ball valve with pneumatic actuator; 3-way-type; Flow path 02; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 2"; Nominal diameter 38mm; Length 149mm; Actuator PAS1155; Ball T

Intrastat No.: 84818081
Country of origin: China
Weight: 17.91 Kg
Short Itemnumber: BA038202S0

ball valve with pneumatic actuator; 3-way-type; flow path 02; sealing on three ports; body, ball AISI 316; seals PTFE; single acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 2"; nominal diameter 38mm; length 149mm; actuator PAS1155; ball T

On request

This combination does not exist.

Availability:

Specifications
Spare Parts

No Specifications

BA038-20-L x 1.0

Ball valve made of stainless steel BA038-20-L

Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C; G 2"; Nominal diameter 38mm; Pressure range 0...64bar; Length 149mm; Ball T

Add to Cart

PAS1155 x 1.0

Pneumatic actuator PAS1155

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 115mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 71,1Nm

Add to Cart

RI3765 x 1.0
