Ball valve with pneumatic actuator Series BA037, BA038 Store

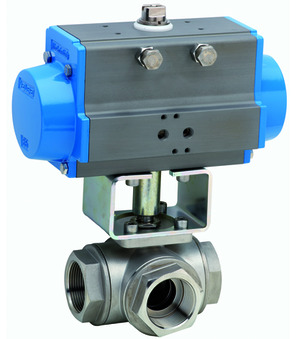

Ball valve with pneumatic actuator BA038-112-D0

Name: Ball valve with pneumatic actuator BA038-112-D0
SKU: BA038-112-D0
Price: 1055.8 EUR
Availability: InStock

Ball valve with pneumatic actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Double acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 11/2"; Nominal diameter 32mm; Length 125,8mm; Actuator PAD085; Ball T

Intrastat No.: 84818081
Country of origin: China
Weight: 8.19 Kg
Short Itemnumber:BA038112D0

ball valve with pneumatic actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; double acting actuator; reduced bore; control pressure 5,5...8bar; medium temperature -20...+160°C; pressure range 0...64bar; G 11/2"; nominal diameter 32mm; length 125,8mm; actuator PAD085; ball T

1.055,80 € 1055.8 EUR 1.055,80 €

Female thread
- G 1 1/2"
DN
- 32 mm
Length
- 125,8 mm
Ball
- T
Actuator
- PAD085

This combination does not exist.

Availability:

In den Warenkorb

Specifications
Spare Parts

dimension
Female thread	G 1 1/2"
DN	32 mm
Length	125,8 mm
Designs
Ball	T
characteristics
Actuator	PAD085

BA038-112-L x 1.0

Ball valve made of stainless steel BA038-112-L

Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 11/2"; Nominal diameter 32mm; Pressure range 0...64bar; Length 125,8mm; Ball T

Add to Cart

PAD085 x 1.0

Pneumatic actuator PAD085

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm

Add to Cart

RI3764 x 1.0
