Ball valve with electrical actuator BA037-20-0L

Price.

1.701,60 €
Ball valve with electrical actuator Series BA037, BA038 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with electrical actuator Series BA037, BA038
  6. BA037-20-0L

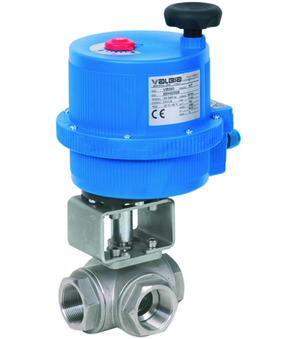

Ball valve with electrical actuator BA037-20-0L
Ball valve with electrical actuator BA038-20-0L
Ball valve with electrical actuator BA038-20-0L
1.705,00 €
1.705,00 €
Ball valve with electrical actuator BA037-20-0H
Ball valve with electrical actuator BA037-20-0H
1.766,20 €
1.766,20 €

Ball valve with electrical actuator BA037-20-0L

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 2"; DN 38mm; Pressure range 0...64bar; Length 149mm; Operating time 27s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: China
Weight: 11.43 Kg
Short Itemnumber:BA037200L
https://www.stasto.eu/web/image/product.template/152656/image_1920?unique=cc58372

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 2"; DN 38mm; pressure range 0...64bar; length 149mm; operating time 27s; voltage 24VAC/DC; ball L

1.701,60 € 1701.6 EUR 1.701,60 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 2"
DN 38 mm
Length 149 mm
Designs
Ball L
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB110L
Operating time 27 s
Ball valve made of stainless steel BA037-20-L
BA037-20-L x 1.0
Ball valve made of stainless steel BA037-20-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 2"; Nominal diameter 38mm; Pressure range 0...64bar; Length 149mm; Ball L
Add to Cart
Electrical actuator VB110-L
VB110-L x 1.0
Electrical actuator VB110-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 110Nm; Operating time 27s; Flange ISO5211 F07/F10-Stern 17 mm; Voltage 24VAC/DC; Protection class IP67
Add to Cart
