STASTO Allgemeine Preisliste (EUR)
Ball valve with electrical actuator Series BA037, BA038 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Ball valve with electrical actuator Series BA037, BA038
  6. BA037-14-0L

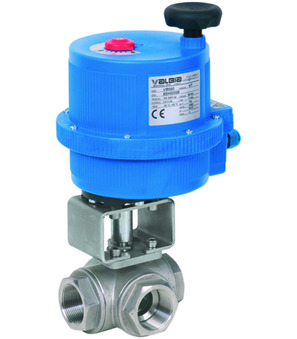

Ball valve with electrical actuator BA037-14-0L

Ball valve with electrical actuator BA037-14-0L

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 1/4"; DN 11mm; Pressure range 0...64bar; Length 69,4mm; Operating time 10s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.38 Kg
Short Itemnumber: BA037140L
https://www.stasto.eu/web/image/product.template/152647/image_1920?unique=bbc91d7

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 1/4"; DN 11mm; pressure range 0...64bar; length 69,4mm; operating time 10s; voltage 24VAC/DC; ball L

629,00 € 629.0 EUR 629,00 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1/4"
DN 11 mm
Length 69,4 mm
Designs
Ball L
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB015L24
Operating time 10 s
Ball valve made of stainless steel BA037-14-L
BA037-14-L x 1.0
Ball valve made of stainless steel BA037-14-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1/4"; Nominal diameter 11mm; Pressure range 0...64bar; Length 69,4mm; Ball L
Add to Cart
Electrical actuator VB015-L-24
VB015-L-24 x 1.0
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
Add to Cart
