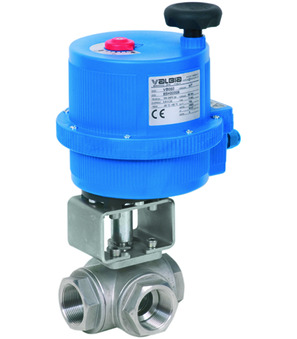

Ball valve with electrical actuator BA037-10-0L

Ball valve with electrical actuator BA037-10-0L

Ball valve with electrical actuator Series BA037, BA038; 3-way-type; Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Reduced bore; Medium temperature -20...+160°C; G 1"; DN 20mm; Pressure range 0...64bar; Length 102,4mm; Operating time 8s; Voltage 24VAC/DC; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.28 Kg
Short Itemnumber: BA037100L
https://www.stasto.eu/web/image/product.template/152652/image_1920?unique=bbc91d7

ball valve with electrical actuator series BA037, BA038; 3-way-type; sealing on three ports; body, ball AISI 316; seals PTFE; reduced bore; medium temperature -20...+160°C; G 1"; DN 20mm; pressure range 0...64bar; length 102,4mm; operating time 8s; voltage 24VAC/DC; ball L

984,40 € 984.4 EUR 984,40 €

price on request

  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread G 1"
DN 20 mm
Length 102,4 mm
Designs
Ball L
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB030L
Operating time 8 s
Ball valve made of stainless steel BA037-10-L
BA037-10-L x 1.0
Ball valve made of stainless steel BA037-10-L
Ball valve made of stainless steel Series BA037, BA038; 3-way-type; Female thread; Reduced bore; Body 1.4408; Ball 1.4401; Seals PTFE; Sealing on three ports; Medium temperature -20...+160°C;; G 1"; Nominal diameter 20mm; Pressure range 0...64bar; Length 102,4mm; Ball L
Add to Cart
Electrical actuator VB030-L
VB030-L x 1.0
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
