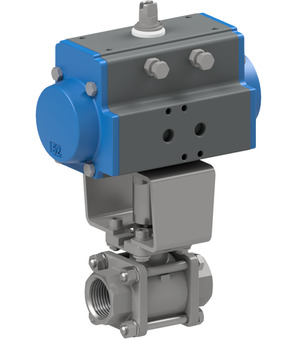

Ball valve with pneumatic actuator BA036-34-D0

Ball valve with pneumatic actuator BA036-34-D0

Ball valve with pneumatic actuator Series BA036-D0; For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; RP 3/4"; Nominal diameter 20mm; Length 76mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.13 Kg
Short Itemnumber: BA03634D0
https://www.stasto.eu/web/image/product.template/133921/image_1920?unique=564f4a4

ball valve with pneumatic actuator series BA036-D0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; RP 3/4"; nominal diameter 20mm; length 76mm; actuator PAD052

394,90 € 394.9 EUR 394,90 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...15bar
Female thread RP 3/4"
DN 20 mm
Length 76 mm
Documents
Data sheets, drawings and CAD files
Pressure range Steam 0...15bar
Female thread RP 3/4"
DN 20 mm
Length 76 mm

BA036-34-D0

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel 710060-3/4"
710060-3/4" x 1.0 Pcs
Ball valve made of stainless steel 710060-3/4"
Ball valve made of stainless steel Series 710060; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 3/4"; Nominal diameter 20mm; Length 76mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
RI3781 x 1.0 Pcs
RI3781
Mounting bracket; F05/F03-F04; Bolt 11-7
