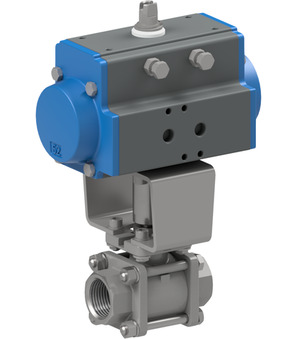

Ball valve with pneumatic actuator BA036-30-S0

Ball valve with pneumatic actuator BA036-30-S0

Ball valve with pneumatic actuator Series BA036-S0; For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 3"; Nominal diameter 80mm; Length 180mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 28.42 Kg
Short Itemnumber: BA03630S0
https://www.stasto.eu/web/image/product.template/158452/image_1920?unique=9a2e9bc

ball valve with pneumatic actuator series BA036-S0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 3"; nominal diameter 80mm; length 180mm; actuator PAS1255

1.769,00 € 1769.0 EUR 1.769,00 €

Not Available For Sale

excl. tax
  • Connection
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Coil
  • Actuator
  • Actuator 2
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...14bar
Female thread RP 3"
DN 80 mm
Length 180 mm
Documents
Data sheets, drawings and CAD files
Pressure range Steam 0...14bar
Female thread RP 3"
DN 80 mm
Length 180 mm

BA036-30-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA036-30-L
BA036-30-L x 1.0 Pcs
Ball valve made of stainless steel BA036-30-L
Ball valve made of stainless steel Series BA036; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 3"; Nominal diameter 80mm; Length 180mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
RI3010 x 1.0 Pcs
RI3010
Mounting bracket; F10-F07; Bolt 22-14
