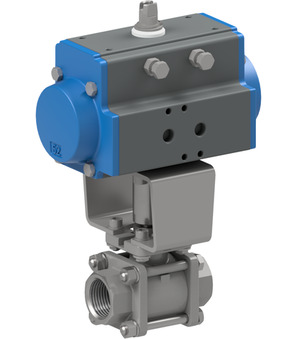

Ball valve with pneumatic actuator BA036-14-S0

Ball valve with pneumatic actuator BA036-14-S0

Ball valve with pneumatic actuator Series BA036-S0; For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Pressure range Steam 0...14bar; Medium temperature -20...+198°C; RP 1/4"; Nominal diameter 8mm; Length 57mm; Actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 1.673 Kg
Short Itemnumber: BA03614S0
https://www.stasto.eu/web/image/product.template/131784/image_1920?unique=c934435

ball valve with pneumatic actuator series BA036-S0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; pressure range steam 0...14bar; medium temperature -20...+198°C; RP 1/4"; nominal diameter 8mm; length 57mm; actuator PAS0525

368,10 € 368.1 EUR 368,10 €

Not Available For Sale

excl. tax
  • Connection
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Coil
  • Actuator
  • Actuator 2
  • Max. inlet pressure
  • Filter element
  • Flow rate at 6.3bar/Δp=1bar

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range Steam 0...14bar
Female thread RP 1/4"
DN 8 mm
Length 57 mm
Documents
Data sheets, drawings and CAD files
Pressure range Steam 0...14bar
Female thread RP 1/4"
DN 8 mm
Length 57 mm

BA036-14-S0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel 710060-1/4"
710060-1/4" x 1.0 Pcs
Ball valve made of stainless steel 710060-1/4"
Ball valve made of stainless steel Series 710060; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 1/4"; Nominal diameter 8mm; Length 57mm
Pneumatic actuator PAS0525
PAS0525 x 1.0 Pcs
Pneumatic actuator PAS0525
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
RI3021 x 1.0 Pcs
RI3021
Mounting bracket; F03; 11-5
