Ball valve with pneumatic actuator Series BA036-D0 Store

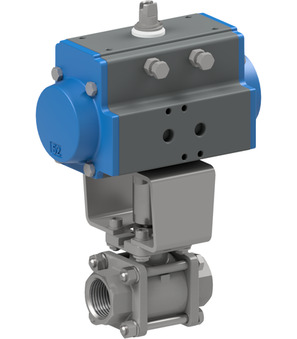

Ball valve with pneumatic actuator BA036-10-D0

Ball valve with pneumatic actuator BA036-10-D0

Ball valve with pneumatic actuator Series BA036-D0; For steam; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+198°C; Pressure range Steam 0...15bar; RP 1"; Nominal diameter 25mm; Length 92mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 2.67 Kg
Short Itemnumber: BA03610D0

ball valve with pneumatic actuator series BA036-D0; for steam; female thread; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range steam 0...15bar; RP 1"; nominal diameter 25mm; length 92mm; actuator PAD052

446,60 € 446.6 EUR 446,60 €

Female thread
- RP 1"
DN
- 25 mm
Length
- 92 mm
Actuator
- PAD052

This combination does not exist.

Availability:

dimension
Female thread	RP 1"
DN	25 mm
Length	92 mm
characteristics
Actuator	PAD052

Data sheets, Instructions, 3D-files and Certificates...

In your language

Data Sheets

1

Data sheet_Ball valve with pneumatic actuator Series BA036-D0_EN.pdf

Declarations of Conformity

1

Declaration of conformity_Ball valve with pneumatic actuator Series BA036-D0_EN.pdf

Datové listy

1

Datový list_kulový kohout s otočným pneumatickým pohonem série BA036-D0_CS.pdf

Prohlášení o shodě

1

Prohlášení o shodě_kulový kohout s otočným pneumatickým pohonem série BA036-D0_CS.pdf

Data Sheets

1

Datablad_Kugleventil med pneumatisk drejedrev Serie BA036-D0_DA_DK.pdf

Datenblätter

1

Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA036-D0_DE.pdf

Konformitätserklärungen

1

Konformitätserklärung_Kugelhahn mit Druckluftdrehantrieb Serie BA036-D0_DE.pdf

Data Sheets

1

Δελτίο δεδομένων_Σφαιρική βάνα με πνευματικό περιστροφικό ενεργοποιητή Σειρά BA036-D0_EL_GR.pdf

Data Sheets

1

Ficha técnica_Válvula de bola con actuador neumático rotativo Serie BA036-D0_ES.pdf

Data Sheets

1

Tietolehti_Palloventtiili paineilmatoimisella kääntötoimilaitteella Sarja BA036-D0_FI.pdf

Data Sheets

1

Fiche technique_Vanne à boisseau sphérique avec actionneur pneumatique rotatif Série BA036-D0_FR.pdf

Data Sheets

1

Podatkovni list_Kuglasti ventil s pneumatskim rotacijskim pogonom Serija BA036-D0_HR.pdf

Adatlapok

1

Adatlap_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA036-D0_HU.pdf

Megfelelőségi nyilatkozatok

1

Megfelelőségi nyilatkozat_pneumatikus forgatóhengerrel működtetett gömbcsap sorozat BA036-D0_HU.pdf

Data Sheets

1

Scheda tecnica_Valvola a sfera con attuatore pneumatico rotativo Serie BA036-D0_IT.pdf

Data Sheets

1

Datablad_Kuleventil med pneumatisk roterende aktuator Serie BA036-D0_NB_NO.pdf

Data Sheets

1

Datasheet_Kogelkraan met pneumatische draaiaandrijving Serie BA036-D0_NL.pdf

Karty katalogowe

1

Arkusz danych_zawór kulowy z napędem pneumatycznym Seria BA036-D0_PL.pdf

Deklaracje zgodności

1

Deklaracja zgodności_zawór kulowy z napędem pneumatycznym Seria BA036-D0_PL.pdf

Data Sheets

1

Fișă de date_Robinet cu bilă cu actuator rotativ pneumatic serie BA036-D0_RO.pdf

Podatkovni listi

1

Podatkovni list_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA036-D0_SL.pdf

Izjave o skladnosti

1

Izjava o skladnosti_Krogelna pipa s pnevmatskim rotacijskim pogonom serija BA036-D0_SL.pdf

Data Sheets

1

Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA036-D0_SRLATIN.pdf

Declarations of Conformity

1

Deklaracija o usklađenosti_kuglasti ventil sa pneumatskim aktuatorom serije BA036-D0_SRLATIN.pdf

Data Sheets

1

Datablad_Kulventil med pneumatiskt vriddon Serie BA036-D0_SV.pdf

Ball valve made of stainless steel 710060-1"

710060-1" x 1.0

Ball valve made of stainless steel 710060-1"

Ball valve made of stainless steel Series 710060; For steam; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Pressure range Steam 0...15bar; Medium temperature -20...+198°C; RP 1"; Nominal diameter 25mm; Length 92mm

Pneumatic actuator PAD052

PAD052 x 1.0

Pneumatic actuator PAD052

Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm

RI3030 x 1.0

RI3030

Mounting bracket; F05/F03-F04,11-8
