BA034-32-D0-01

BA034-32-D0-01

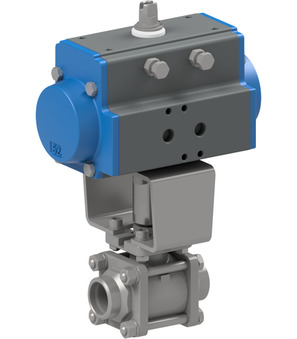

Ball valve with pneumatic actuator Series BA034-D0; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Double acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm; Special version: Actuator PAD063

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 3.75 Kg
Short Itemnumber: BA03432D001
https://www.stasto.eu/web/image/product.template/241180/image_1920?unique=97669aa

ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; double acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 32mm; pressure range 0...25bar; length 106mm; actuator PAD052

510,30 € 510.3 EUR 510,30 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25bar
Brand STASTO
Pressure range 0...25bar
Brand STASTO
Ball valve made of stainless steel BA034-32-L
BA034-32-L x 1.0 Pcs
Ball valve made of stainless steel BA034-32-L
Ball valve made of stainless steel Series BA034-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 32mm; Pressure range 0...25bar; Length 106mm
Pneumatic actuator PAD063
PAD063 x 1.0 Pcs
Pneumatic actuator PAD063
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 63mm; Flange ISO5211 F05/F07; Female square 14mm; Torque at 5,5bar 36Nm
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
