STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA034-15-S0

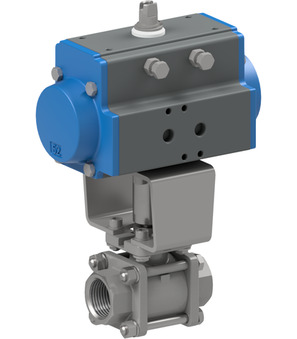

BA034-15-S0

BA034-15-S0

ball valve with pneumatic actuator; TA-Luft; butt weld ends; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.883 Kg
Short Itemnumber: BA03415S0
https://www.stasto.eu/web/image/product.template/171990/image_1920?unique=3970b0b

ball valve with pneumatic actuator; TA-Luft; butt weld ends; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 15mm; pressure range 0...64bar; length 65mm; actuator PAS0525

357,10 € 357.1 EUR 357,10 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel BA034-15-L
    BA034-15-L x 1.0
    Ball valve made of stainless steel BA034-15-L
    Ball valve made of stainless steel Series BA034-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 15mm; Pressure range 0...64bar; Length 65mm
    Add to Cart
    Pneumatic actuator PAS0525
    PAS0525 x 1.0
    Pneumatic actuator PAS0525
    Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 6,2Nm
    Add to Cart
