BA034-100-S0-3C

BA034-100-S0-3C

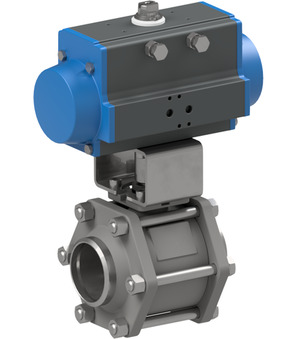

Ball valve with pneumatic actuator Series BA034-S0-3C; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 100mm; Pressure range 0-16bar; Length 217mm; Actuator PAS1255; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness

Intrastat No.: 84818081
Country of origin: Italy
Weight: 37.63 Kg
Short Itemnumber: BA034100S03C
https://www.stasto.eu/web/image/product.template/196079/image_1920?unique=87fb56f

ball valve with pneumatic actuator series BA034-S0-3C; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 100mm; pressure range 0-16bar; length 217mm; actuator PAS1255; incl. inspection certificate EN-10204-3.1; for material, pressure, function and tightness

2.356,70 € 2356.7 EUR 2.356,70 €

Not Available For Sale

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0-16bar
Brand STASTO
Pressure range 0-16bar
Brand STASTO
Ball valve made of stainless steel BA034-100-L-3C
BA034-100-L-3C x 1.0 Pcs
Ball valve made of stainless steel BA034-100-L-3C
Ball valve made of stainless steel Series BA034-L-3C; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Incl. Inspection certificate EN-10204-3.1; For material, pressure, function and tightness; Nominal diameter 100mm; Pressure range 0…16bar; Length 217mm
Pneumatic actuator PAS1255
PAS1255 x 1.0 Pcs
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
RI3005 x 1.0 Pcs
RI3005
Mounting bracket For Ball valve; F10-F10/F07; Bolt 22-18
