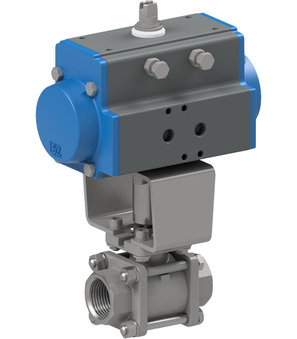

Ball valve with pneumatic actuator BA033-40-S0-A
Ball valve with pneumatic actuator BA033-30-S0-A
Ball valve with pneumatic actuator BA033-30-S0-A
1.864,30 €
1.864,30 €
Ball valve with pneumatic actuator BA130-100-D0
Ball valve with pneumatic actuator BA130-100-D0
2.451,20 €
2.451,20 €

Ball valve with pneumatic actuator BA033-40-S0-A

Ball valve with pneumatic actuator Series BA033; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Single acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 4"; Nominal diameter 100mm; Pressure range 0…16bar; Length 217mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 37.35 Kg
Short Itemnumber:BA03340S0A
https://www.stasto.eu/web/image/product.template/159717/image_1920?unique=39f5bda

ball valve with pneumatic actuator series BA033; ATEX II 2 G/D; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator ATEX II 2 G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 4"; nominal diameter 100mm; pressure range 0…16bar; length 217mm; actuator PAS1255

2.676,40 € 2676.4 EUR 2.676,40 €

price on request

  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 4"
DN 100 mm
Length 217 mm
design
Design ATEX
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS1255
Ball valve made of stainless steel BA033-40-L-A
BA033-40-L-A x 1.0
Ball valve made of stainless steel BA033-40-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...64bar; Length 57mm
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
