STASTO Allgemeine Preisliste (EUR)
Other materiales - A03 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Other materiales - A03
  6. BA033-212-D0-01
BA033-212-D0-01

BA033-212-D0-01

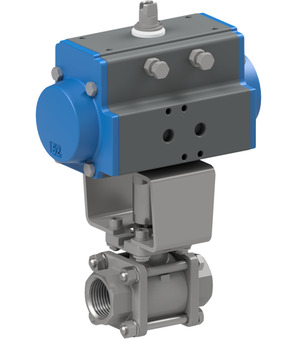

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085; Table height 120mm

Intrastat No.: 84818081
Country of origin: Italy
Weight: 13.73 Kg
Short Itemnumber: BA033212D001
https://www.stasto.eu/web/image/product.template/161958/image_1920?unique=3970b0b

Ball valve with pneumatic actuator; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm; Actuator PAD085; Table height 120mm

1.330,70 € 1330.7 EUR 1.330,70 €

price on request

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    Ball valve made of stainless steel 710000-21/2"
    710000-21/2" x 1.0
    Ball valve made of stainless steel 710000-21/2"
    Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0-16bar; Length 153mm
    Add to Cart
    Pneumatic actuator PAD085
    PAD085 x 1.0
    Pneumatic actuator PAD085
    Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
    Add to Cart
    A4/428/03 x 1.0
    A4/428/03
    Bolt; 1.4305; Diameter 28mm; Height of the bolt 50mm; Male square 17mm; Height of the male square 19mm; Female square 17mm; Height of the female square 14mm
    Add to Cart
