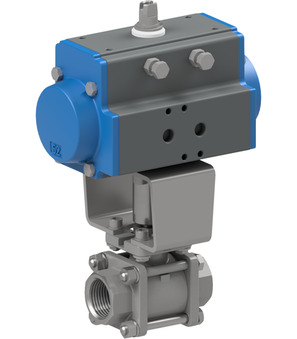

Ball valve with pneumatic actuator BA033-14-D0

Ball valve with pneumatic actuator BA033-14-D0

Ball valve with pneumatic actuator Series BA033-D0; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...64bar; Length 57mm; Actuator PAD032

Intrastat No.: 84818081
Country of origin: Italy
Weight: 0.86 Kg
Short Itemnumber: BA03314D0
https://www.stasto.eu/web/image/product.template/159674/image_1920?unique=d06ecb6

ball valve with pneumatic actuator series BA033-D0; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0...64bar; length 57mm; actuator PAD032

294,60 € 294.6 EUR 294,60 €

Not Available For Sale

excl. tax
  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 1/4"
DN 8 mm
Length 57 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread RP 1/4"
DN 8 mm
Length 57 mm

BA033-14-D0

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel 710000-1/4"
710000-1/4" x 1.0 Pcs
Ball valve made of stainless steel 710000-1/4"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0-64bar; Length 57mm
Pneumatic actuator PAD032
PAD032 x 1.0 Pcs
Pneumatic actuator PAD032
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 32mm; Flange ISO5211 F03; Female square 9mm; Torque at 5,5bar 8Nm
RI3015 x 1.0 Pcs
RI3015
Mounting bracket; F03; 9-5
