BA033-14-D0-AB

BA033-14-D0-AB

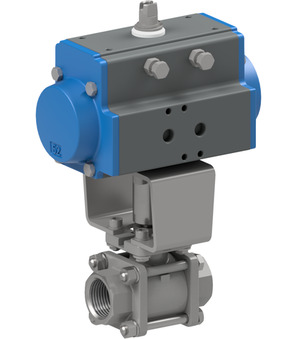

Ball valve with pneumatic actuator Series BA033-D0; ATEX II 2 G/D; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator ATEX II 2 G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...64bar; Length 57mm; Actuator PAD052

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.483 Kg
Short Itemnumber: BA03314D0AB
https://www.stasto.eu/web/image/product.template/240694/image_1920?unique=f96ddcc

ball valve with pneumatic actuator series BA033-D0; female thread; body, ball AISI 316; seals PTFE/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 1/4"; nominal diameter 8mm; pressure range 0...64bar; length 57mm; actuator PAD032

999.999,00 € 999999.0 EUR 999.999,00 €

On request

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us

Share

dimension
Female thread RP 1/4"
DN 8 mm
Length 57 mm
design
Design ATEX
pressure
Pressure range 0...64 bar
characteristics
Actuator PAD032
Ball valve made of stainless steel BA033-14-L-A
BA033-14-L-A x 1.0
Ball valve made of stainless steel BA033-14-L-A
Ball valve made of stainless steel Series BA033-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/4"; Nominal diameter 8mm; Pressure range 0...64bar; Length 57mm
Add to Cart
Pneumatic actuator PAD052
PAD052 x 1.0
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
