STASTO Allgemeine Preisliste (EUR)
BA033-12-D0-02

BA033-12-D0-02

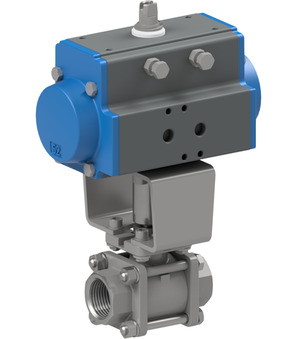

Ball valve with pneumatic actuator Series BA033; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD052; Mounting kits Stainless steel

Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 1.94 Kg
Short Itemnumber: BA03312D002
https://www.stasto.eu/web/image/product.template/239337/image_1920?unique=dfed689

Ball valve with pneumatic actuator Series BA033; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm; Actuator PAD052; Mounting kits Stainless steel

441,00 € 441.0 EUR 441,00 €

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 1/2"
DN 15 mm
Length 65 mm
All specifications (5)
Pressure range 0...64 bar
Female thread RP 1/2"
DN 15 mm
Length 65 mm
Brand STASTO
Ball valve made of stainless steel 710000-1/2"
710000-1/2" x 1.0 Pcs
Ball valve made of stainless steel 710000-1/2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm
Pneumatic actuator PAD052
PAD052 x 1.0 Pcs
Pneumatic actuator PAD052
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 52mm; Flange ISO5211 F03/F05; Female square 11mm; Torque at 5,5bar 20Nm
ATE0303 x 1.0 Pcs
ATE0303
Mounting bridge; Material 1.4301; Flange 1 F03; Flange 2 F03; Height 50mm
IV/00092/13 x 1.0 Pcs
IV/00092/13
Bolt; 1.4305; Diameter 20mm; Height of the bolt 43,5mm; Male square 11mm; Height of the male square 12mm; Two flat 7mm; Two flat height 9mm
